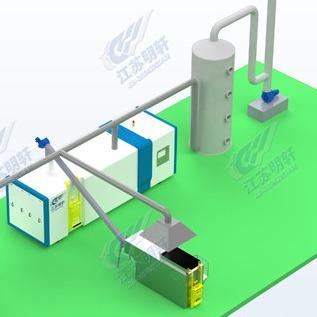

Automatic Food Compost Machine Large Scale 10T Organic Waste Recycling Machine

MXCCJ-10000 composting machine is a integrated system that combine pretreatment, biochemical treatment, residue oil and water separation and collection, three waste treatment and other technologies to reduce organic waste, and conduct harmless and resourceful treatment . The organic waste comprehensive treatment equipment adopts fully automated, intelligent and standardized operation processes.

10T Per Day MXCCJ-10000 Food Waste Composting Machine

• High efficiency

• Energy saving

• Silent operation

• Huge capacity

• PLC intelligent system

Main part features:

1.Receiving hopper volume around 15m³, The fully enclosed structure is adopted, and a bucket cover is set at the top of the hopper. The bucket cover adopts air pressure mode, which can be opened automatically when receiving materials and closed when not receiving materials, so as to avoid odor overflow; The bottom of the hopper is equipped with a shaft free screw conveyor with large conveying capacity, which can effectively avoid material winding and blocking; A drainage device is set under the screw, which can drain part of the free liquid, which is conducive to the subsequent sorting of sundries.

2.The crusher adopts double shaft crusher to realize the following three functions:

1) crushing kitchen waste to a particle size of less than 60mm and meeting the needs of subsequent processes;

2) It has anti winding function, which can fully break the plastic bags and plastic cloth in kitchen waste and improve the efficiency of subsequent equipment treatment;

3) Protection function: in case of overload caused by hard object blockage, it can automatically try to reverse and stop the machine after it cannot rotate.

3.Screw extruder the equipment carries out solid-liquid separation based on the principle of screw extrusion to separate solids greater than 5mm. The discharge end is controlled by air cylinder or air bag, which can automatically adjust the moisture content of discharge to meet the requirements of different materials. The equipment body, solid impurities and fine material outlets are sealed, and there is no odor during operation. All parts in contact with kitchen materials are made of SUS304 stainless steel.

4.The main function of Filter press is to further remove the coarse fiber materials in the slurry, improve the oil extraction rate and body wear and damage rate of the three-phase separator, and the particle size of solids in the slurry after pressure filtration is less than 1mm. All parts of the equipment in contact with materials are made of SUS304 stainless steel.

Product Parameter

What can be cycled?

Applicable senario

Why choose us?

1. Over 15 years experience

2. Strong technical force and professional engineering team

3. Superior quality with competitive price

4. Experienced QC team

5. Excellent design team

6. Customized service

7. One-stop services: Design, producing, packaging, shipping service

8. Flexible MOQ

9. Reliable after-sale service

10. Reliable after-sale service

11. Flexible payment methods

12.Reply customers’ inquiries within 12 hours

Our cases:

Mingxuan company was founded in 2007, and has been developed into a high-tech enterprise which integrates scientific and technological research and development, comprehensive design, production and manufacturing, installation and commissioning, general contracting, project investment and operation.

The company is committed to the development and research of solid waste treatment technology and equipment (including kitchen waste, sludge, etc.), with the efforts of all colleagues of the company, it has obtained more than 30 national patents on kitchen waste equipment and sludge treatment equipment. The company has passed ISO quality management certification, environmental management system certification, occupational health and safety management system certification, as well as national high-tech enterprises and other honors.
